Consumer Unit Upgrade in N16
Introduction
Electro Pulse Ltd completed a consumer unit upgrade at a tenanted terraced house in the N16 postcode area.
The work included replacing the older consumer unit, installing surge protection and Type A RCBO protection, identifying the circuits, completing electrical testing and providing certification.
Project Overview
- Location: N16
- Property type: Tenanted terraced house
- Service: Consumer unit upgrade
- Protection installed: Surge protection and Type A RCBOs
- Testing and certification: Completed
Customer Request
The landlord wanted the existing consumer unit upgraded as part of preparing the electrical installation for continued rental use.
Because the property was occupied, the work needed to be completed carefully while keeping disruption within the home to a minimum.

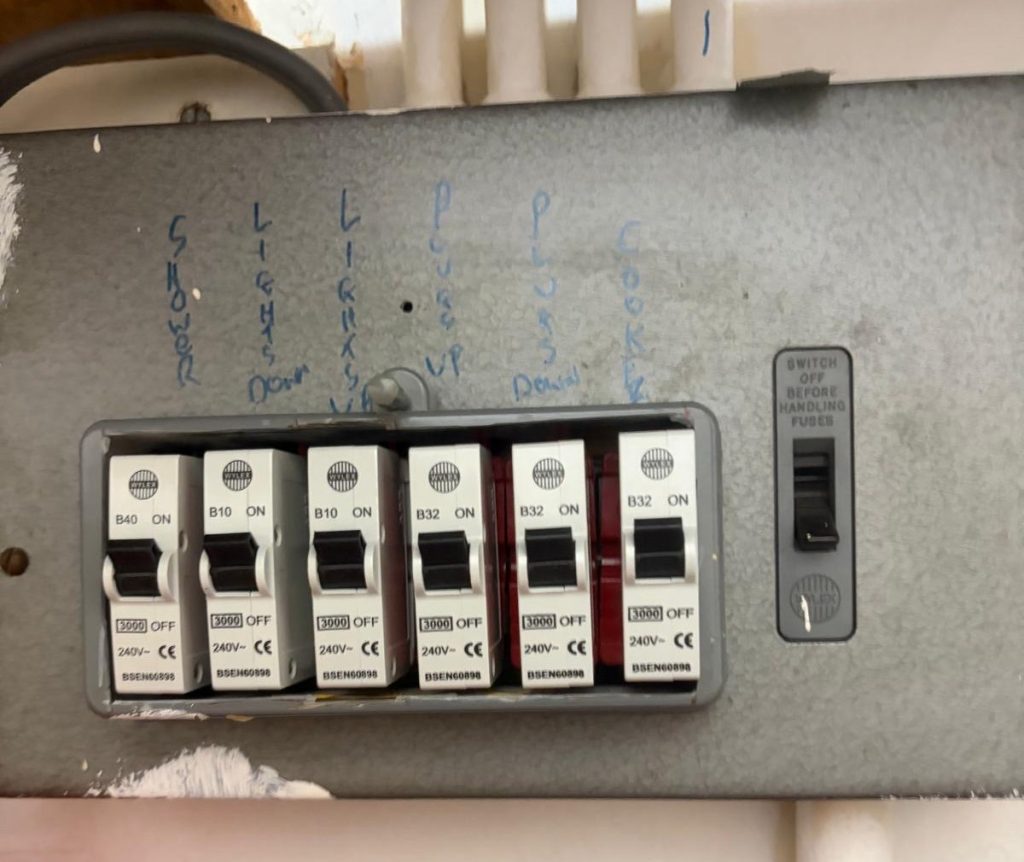

Existing Consumer Unit
The property had an older consumer unit with older protective devices and handwritten circuit identification.
The agreed work was to replace the existing unit with a modern consumer unit incorporating surge protection and individual Type A RCBO protection.
Work Completed
The consumer unit upgrade included:
- Removing the existing consumer unit
- Installing the new consumer unit
- Installing surge protection
- Installing Type A RCBO protection
- Identifying and labelling the final circuits
- Completing electrical testing
- Providing an Electrical Installation Certificate
- Handing over the completed installation

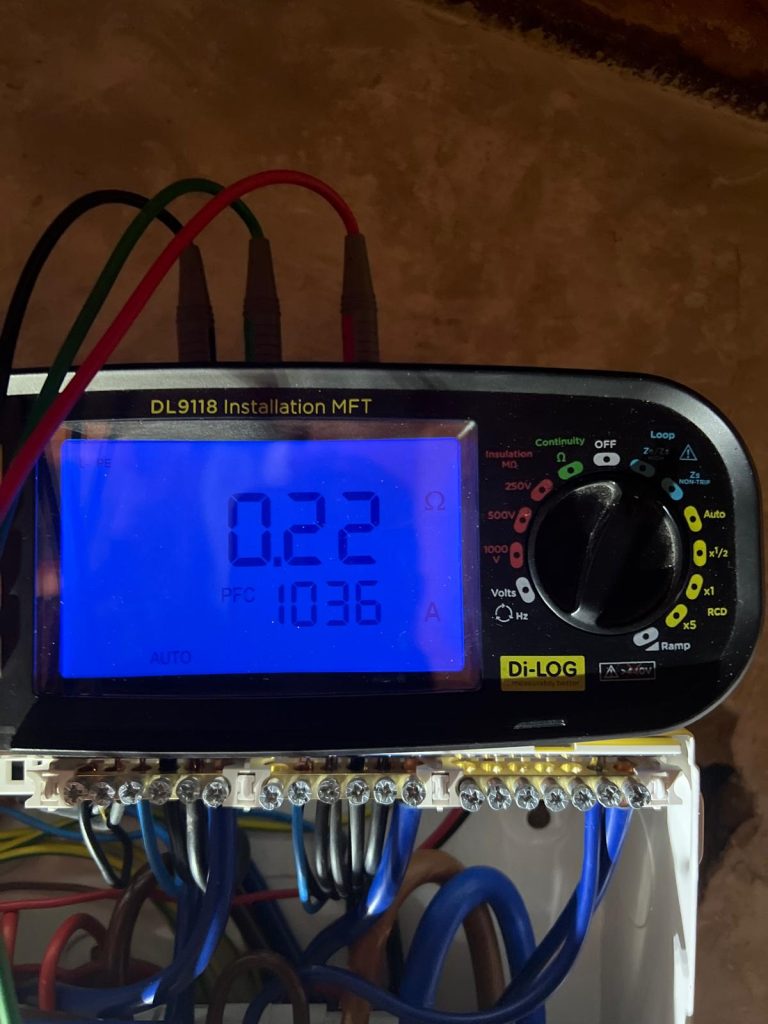

Testing and Certification
After installation, the electrical circuits and protective devices were tested.
The final circuits were clearly identified and labelled, and the customer was provided with an Electrical Installation Certificate for the completed work.
Final Result

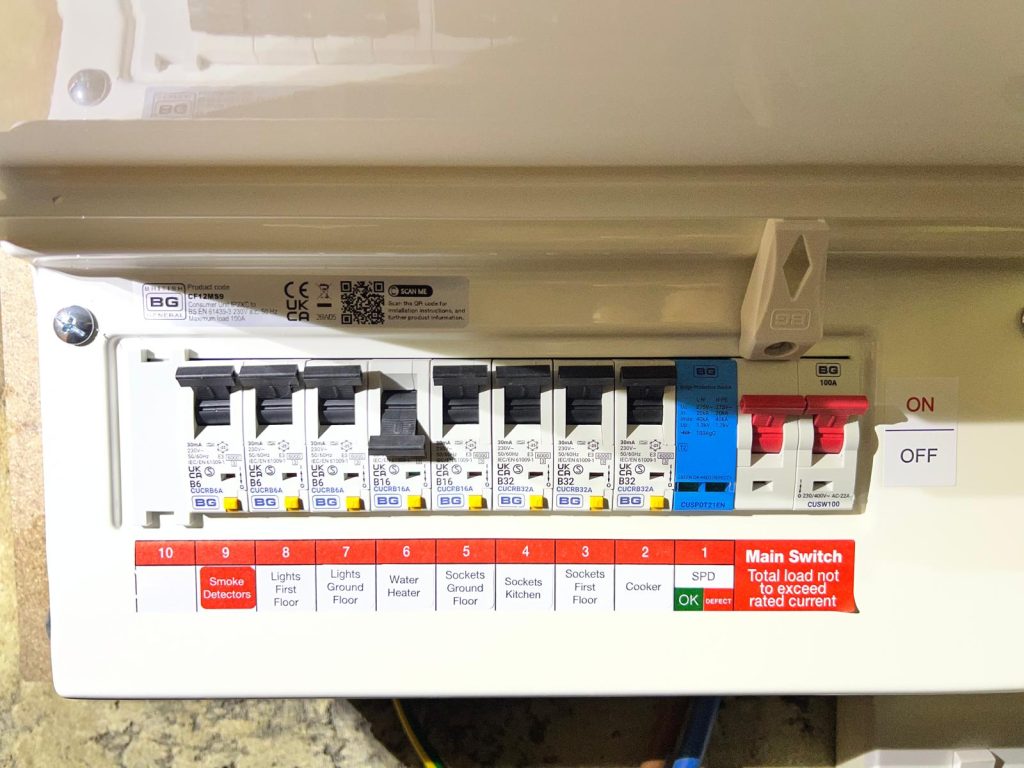

The property now has a modern consumer unit with surge protection and Type A RCBO protection.
The installation was tested, labelled and certified, providing the landlord and tenant with a safer and more clearly organised electrical installation.
